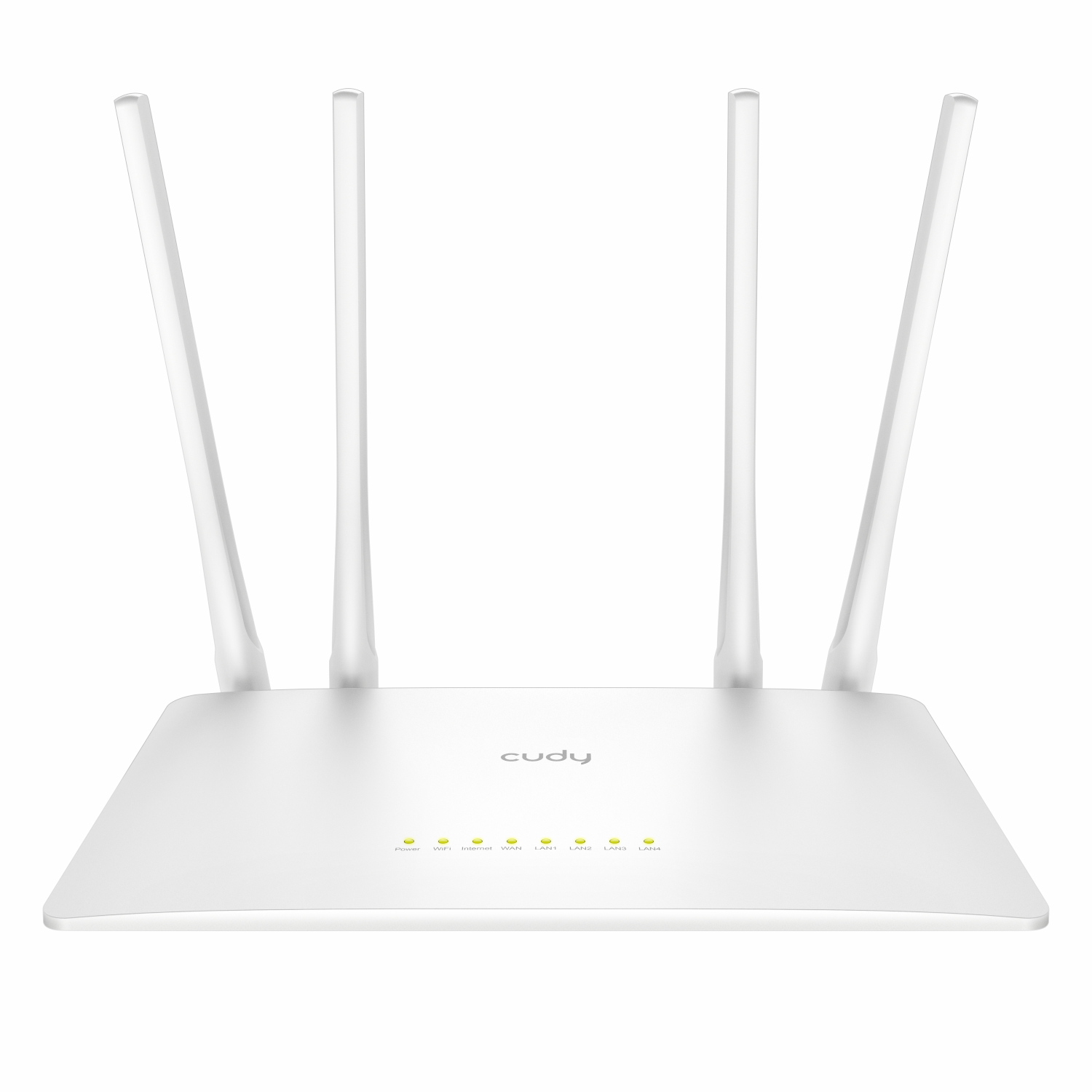

Cudy WR300S 300Mbps 5-Port Wi-Fi 4 Router – White

Description

Cudy WR300S 300Mbps 5-Port Wi-Fi 4 Router – White

300Mbps Wi-Fi | 5 Fast Ethernet Ports | 5-in-1 Modes | VPN Client | Ideal for Small Homes

Quick Specs

• 300Mbps Wi-Fi 4 performance on 2.4GHz
• 5 Fast Ethernet ports (1× WAN + 4× LAN)
• 5-in-1 Modes: Router / Access Point / Extender / WISP / Client
• Built-in VPN Client (WireGuard, PPTP, L2TP)
• Covers up to 90m² with 4 external antennas

Compact & Versatile for Everyday Connectivity

The WR300S is designed for apartments, small homes and offices needing stable, affordable internet coverage. With 300Mbps wireless speeds and four high-gain external antennas, it delivers reliable signal strength for browsing, HD streaming and smart home connectivity.

Its five Fast Ethernet ports allow you to connect gaming consoles, smart TVs, desktop PCs and network devices without relying entirely on Wi-Fi, helping to reduce congestion and maintain stable performance. Whether you’re upgrading an older router or setting up a secondary network, the WR300S provides flexible deployment options without complexity.

Flexible 5-in-1 Multi-Mode Operation

The WR300S is designed to adapt easily to different network environments with five versatile operating modes. In Router Mode, it functions as a standard home router, sharing your internet connection across multiple wired and wireless devices. Access Point Mode allows you to add Wi-Fi to an existing wired network, making it ideal for expanding coverage in offices or larger homes. When set to Range Extender Mode, it boosts and extends an existing wireless signal to improve coverage in areas with weak reception. WISP Mode enables connection to a wireless internet service provider, making it suitable for fixed wireless setups. In Client Mode, the router can provide wired network access to devices by connecting them to an existing Wi-Fi network. This flexibility makes the WR300S a practical solution for fibre connections, fixed wireless services, or repurposing older networking equipment.

Secure & Private Networking

With built-in VPN client support for WireGuard, PPTP and L2TP, the WR300S lets you secure your entire home network through a private, encrypted connection without needing to install VPN software on every device. This means safer browsing, protected online banking, and added privacy for streaming, gaming, and remote work across all connected devices.

Advanced WPA3 Wi-Fi encryption, an integrated SPI firewall and DoS protection help safeguard your home network from hackers and cyber threats. Guest Wi-Fi access allows visitors to connect without exposing your main network, while per-device management features give you full control over who is connected and how your internet is used.

Reliable Hardware for Stable Performance

Powered by a reliable 580MHz processor and 64MB of RAM, the WR300S delivers stable, consistent Wi-Fi performance for home internet connections up to 100Mbps. It’s built to handle everyday online activities such as HD streaming, video calls, remote work, social media browsing and smart home connectivity without lag or constant buffering. Whether multiple devices are connected at once or you’re working from home while others stream, the router maintains smooth and dependable performance.

Four high-gain external antennas help extend Wi-Fi coverage throughout your home, improving signal strength and reducing dead zones in bedrooms, living areas and home offices. For users who need expanded coverage, the WR300S is compatible with Cudy Mesh systems, allowing it to function as a mesh satellite for seamless whole-home Wi-Fi coverage with better roaming and fewer connection drops.

FEATURES:

• 300Mbps 2.4GHz Wi-Fi 4 performance
• 4× Fixed high-gain external antennas
• 5× Fast Ethernet ports (1 WAN + 4 LAN)
• 5-in-1 operation modes for flexible deployment
• Built-in VPN client support (WireGuard, PPTP, L2TP)
• WPA3 wireless security
• SPI firewall with DoS protection
• Guest Wi-Fi support
• IPv4 & IPv6 compatibility
• QoS per-user rate limiting
• Cudy Mesh compatibility (wired & wireless backhaul)
• App & web browser management

SPECIFICATIONS:

• Wi-Fi Standard: Wi-Fi 4 (IEEE 802.11n)
• Wi-Fi Band: 2.4GHz
• Maximum Wi-Fi Speed: Up to 300Mbps
• Wi-Fi Streams: 2×2 MIMO (2T2R)
• Maximum Channel Width: 40MHz
• Modulation: 64-QAM
• Processor (CPU): 580MHz Single-Core
• WAN Port: x 1
• LAN Ports: x 4
• Antennas: 4 × Fixed External Antennas
• Maximum Coverage Area: Up to 90m²
• Mesh Compatibility: Cudy Mesh (Satellite Mode)
• Operation Modes: Router / Access Point / Extender / WISP / Client
• Wi-Fi Security: WPA / WPA2 / WPA3
• Firewall: SPI Firewall with DoS Protection
• VPN Support: WireGuard, PPTP, L2TP (Client)
• Guest Network: Supported
• Parental Controls: Supported
• IP Support: IPv4 & IPv6
• App Management: Supported (Cudy App)
• Web Management: HTTPS Web Interface
• Power Input: 100–240V AC
• Power Output: 5V / 1A DC
• Operating Temperature: 0°C to 40°C
• Product Dimensions: 220 × 135 × 30 mm

WHAT’S IN THE BOX:

• Cudy WR300S 300Mbps 5-Port Wi-Fi 4 Router – White ×1
• RJ45 Ethernet Cable ×1
• Power Adapter ×1
• User Manual ×1

Why Cudy?

Cudy delivers practical, affordable networking solutions built for modern connected homes and small businesses. With reliable hardware, flexible operation modes and easy app-based management, Cudy routers provide stable everyday connectivity without unnecessary cost or complexity.
